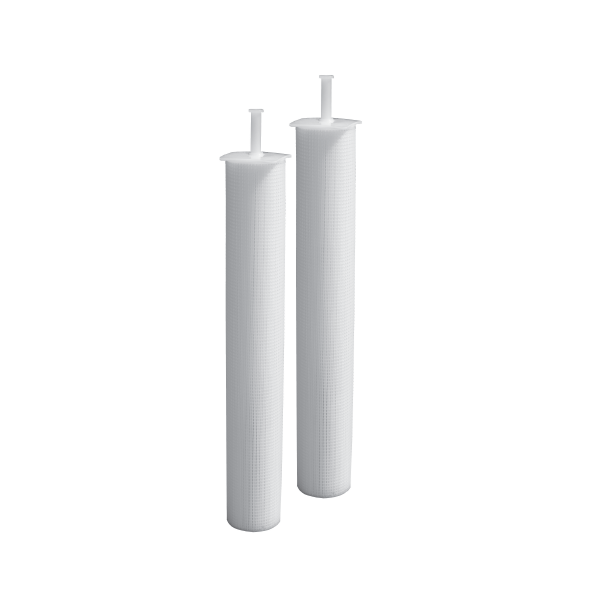

SupaPleat FFC

SupaPleat FFC filters are high surface area cartridges offering maximum efficiency and exceptionally high flow capabilities. Developed to suit large scale processes where high performance is required, the filters incorporate advanced pleated depth media providing low pressure loss and high dirt capacity.

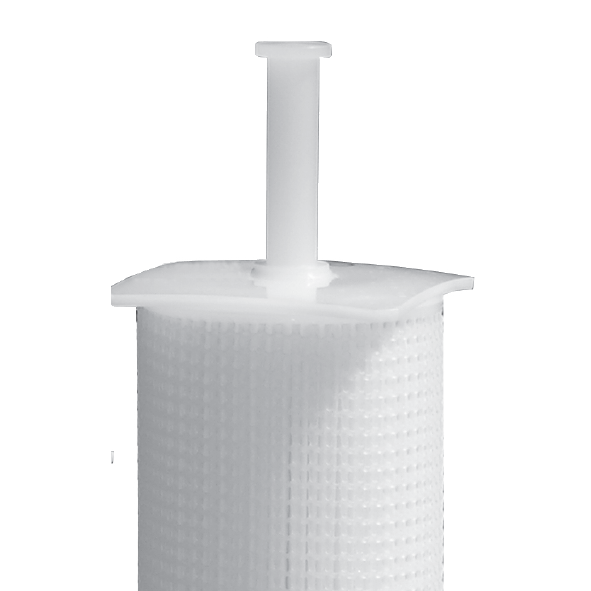

The standard range is manufactured using polypropylene end caps and internal support core. Amazon Filters also offers cartridges manufactured with stainless steel cage and core and nylon end fittings. These are particularly suited for applications where higher temperature ratings are required or compatibility may be an issue. This makes SupaPleat FFC cartridges the ideal choice for a wide range of applications.

Thermal welding processes seal all components, eliminating adhesives and extractables and optimising cartridge integrity. In-house developments have optimised the pleat pack ensuring rigidity is maintained at all flow rates.

Enquiry form

High surface area meltblown polypropylene or glass microfibre media operating in ‘out to in’ mode
Available with different connectors to allow retrofitting of existing high flow systems
All cartridges are thermally bonded and adhesive free
High flow rates and long life to minimise filtration costs
Up to 60” length filters allow quick cartridge replacement
Absolute removal ratings for consistent and reliable performance
Available in numerous removal ratings (0.5 – 50µm) so suitable for a wide range of applications
Cryptosporidium removal grade (CRY) with typical 104 log reduction value
XP Extended life version for more challenging applications
Stainless steel cage and core and nylon end caps versions available for more aggressive processes
Meets requirements on materials used for particles intended to come into contact with food as described in CFR Title 21, as well as the appropriate European guidelines
Full product validation guide available
Manufactured under strict control with batch number identification, giving full traceability on all components

Food and Beverage: Bottled water, Beers, Wines, Polishing lines, General clarification

Pharmaceutical: Solvent discharge, Raw water supplies, batch transfers

Fine Chemicals: Polymers, Acids, Bases, Solvents

Water Treatment: Pre reverse osmosis, UV protection, Resin and carbon trap

Automotive: Wash solutions, Cooling fluid, Blanking wash oils, Electrophoretic paints

Oil & Gas: Water injection systems, Amine streams, Glycols

Power Generation: Water treatment (boiler feed sweetening), return condensate lines
